MENDELS ZONE has put formal methods into practical use as described
above, and it becomes possible to verify the correctness of specifications and
transform them into programs. As a result, reliable programs can be gener-
ated.

OUTLINE OF SYSTEM

The development of programs using MENDELS ZONE has two phases,
namely, the "Algebraic Specification Phase" in which objects are generated
and the "Petri Net Phase" in which Objects are composed.

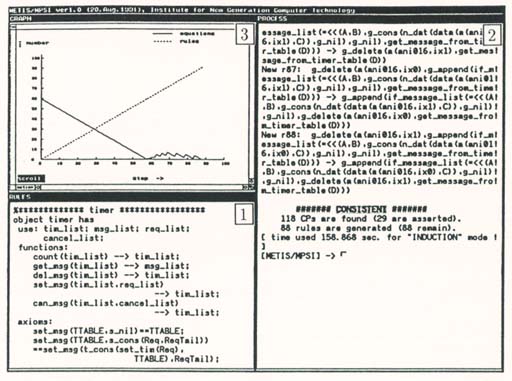

Figure 1 is a snapshot taken during the "Algebraic Specification Phase".




FIGURE 1


Users denote algebraic specifications for behavior Method of objects . In
order to describe specifications correctly, MENDELS ZONE provides several
support functions: syntactical check, direct execution as a term rewriting
system and verification with inductionless induction. When equations that the
specifications should satisfy are given in , the system verifies automatically
whether they are true or not. Progress of the verification procedure can be
observed in . After verification, the specifications are transformed into
MENDEL objects automatically.

Figure 2 is a snapshot taken during the "Petri Net Phase". Objects gener-
ated by automated transformation are registered in a Parts-Library . Com-
position of objects is represented in terms of a high-level Petri net (MENDEL
net), and is created using only mouse operations in the graphical MENDEL
net editor . In general, there are some timing constraints among methods in


					- 99 -
