Circuit Partitioning

In our simulator, the "Cascading-Oriented Partitioning" strategy is used
for circuit partitioning to attain high-quality load distribution.

Firstly, COP makes several clusters by grouping gates that are connected
to each other into a cascade-form. Then, the clusters are cut or merged to
adjust their sizes. Finally, the clusters are assigned to processors at random.

This scheme provides adequate partitioning solutions that satisfy these
three requirements: load balancing, keeping inter-PE communication fre-
quency low and extracting a lot of parallelism.

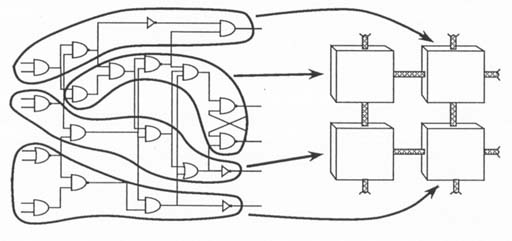

Figure 4: Cascading-Oriented Partitioning


Performance Measurement

We simulated five sequential circuits on the PIM/m machine. These were
benchmark data for ISCAS'89. Table 1 shows the size (# of gates) of the
target circuits. Figure 5 indicates the performance of the simulator.



Circuits
s38584
s38417
s35932
s15850
s13207
# of gates
27,965
31,995
26,433
13,354
11,965

Table 1: Size of the circuits


In the best case, 537K events/sec performance and 166-fold speedup were
attained using 256 processors.
