Case modification mechanism

Verifying the retrieved cases

System verifies the availability of the retrieved cases by modification rules,
if there are some incompatible detail specs. Modification rules deal with
changing carry or number of devices, replacing another block, etc.

Failure prediction and recovery

Precedential failure situations and recovery informations represented with
causal relations are also stored into case base. SME also predicts similar
failures and advices the failure recoveries.(Fig.4)

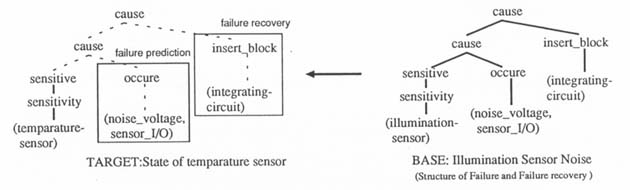

Fig.4 Failure prediction and recovery with SME


RESULT

Through experiments of non-stereotyped circuit, we confirmed the effec-
tiveness of CBR method with SME. We also comfirmed the effectiveness of
parallel processing for case retrieval task requiring a long run time.

OUTLINE OF DEMONSTRATION

We deal with an application problem of telemeter circuits (a performance
monitor of air-conditioner).

For 22 partial functional hierarchy trees for the input problem, available
circuits are retrieved from 180 design cases, modified and combined.

Design result is a block diagram with 118 functional circuit blocks

System shows how similar circuits are retrieved and modified.



					- 30 -
